Description
After Sale Service Introduction
What kind of support you can get from Hoace Intelligent？
 |
Lifetime Tech Support
|
 |
Local Tech Specialists
|
 |
Customer Support Center
|
Application
Applicable Materials:
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact Us with questions on specific materials not listed, we can process a sample for confirmation.
YOU CAN ENGRAVE THESE MATERIALS
Bamboo Products/Wood/Paper/Rubber/Leather/Building Ceramics /PVC/Acrylic/Glass/ABS

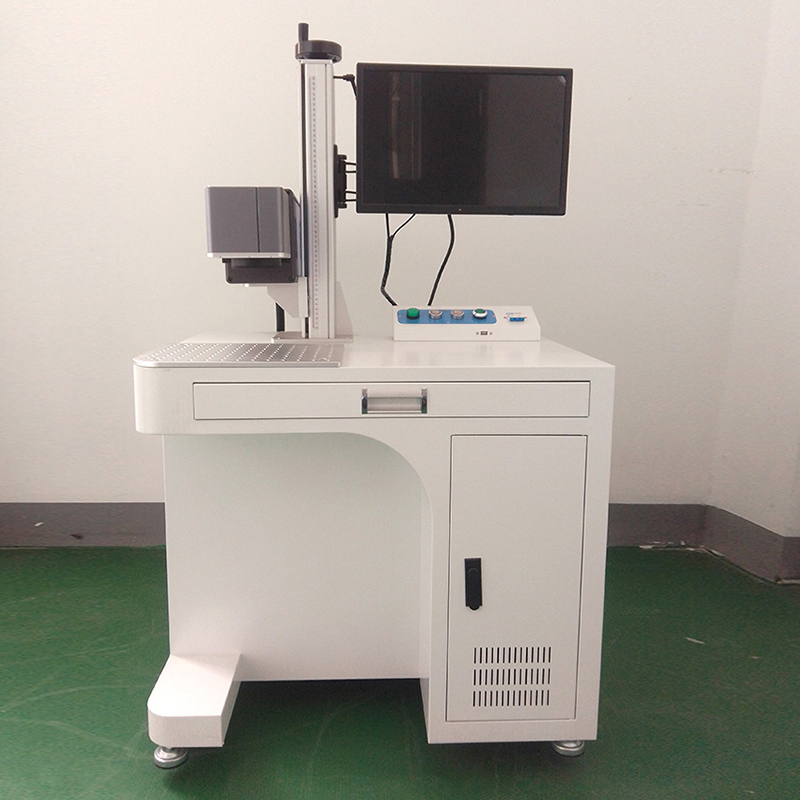

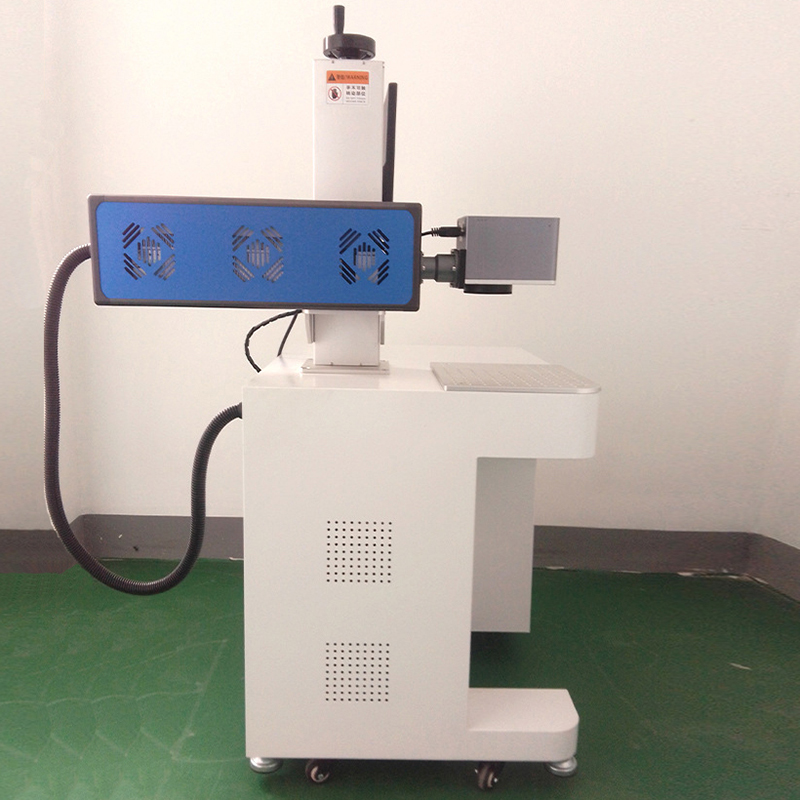

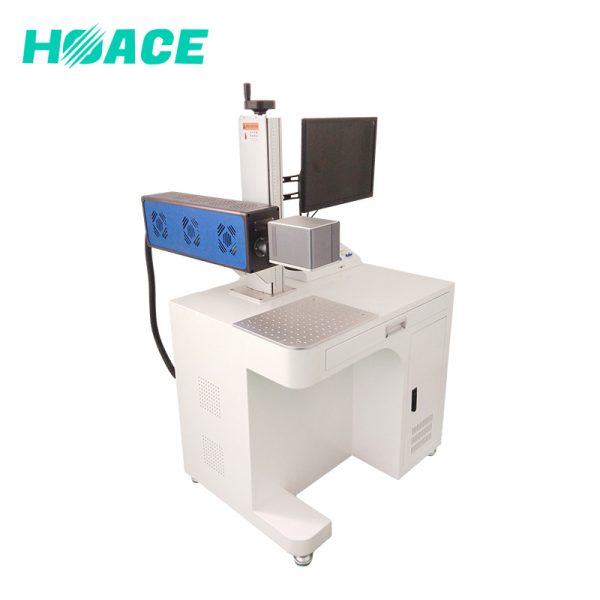

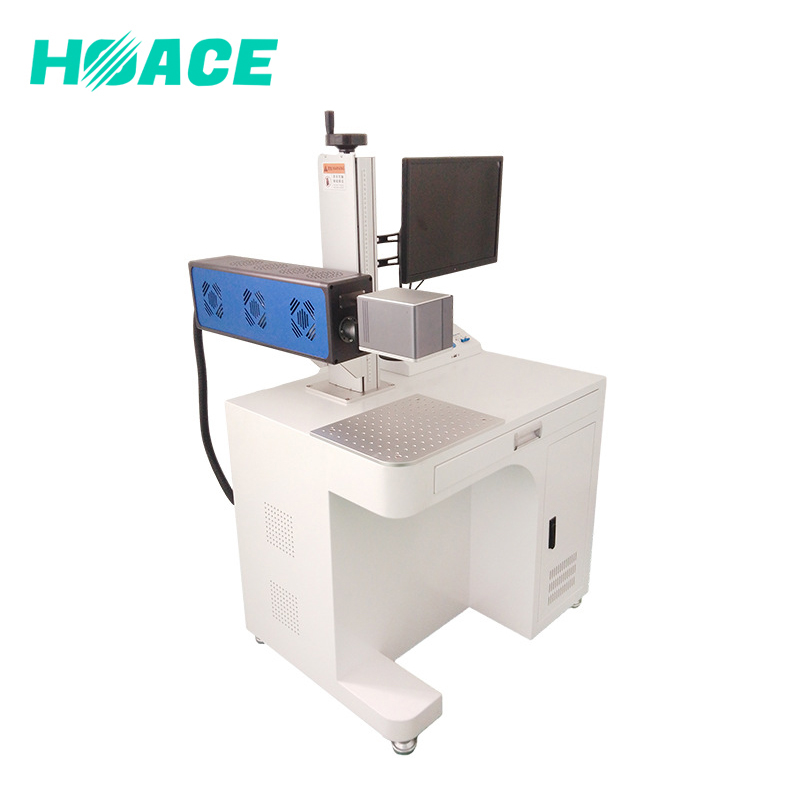

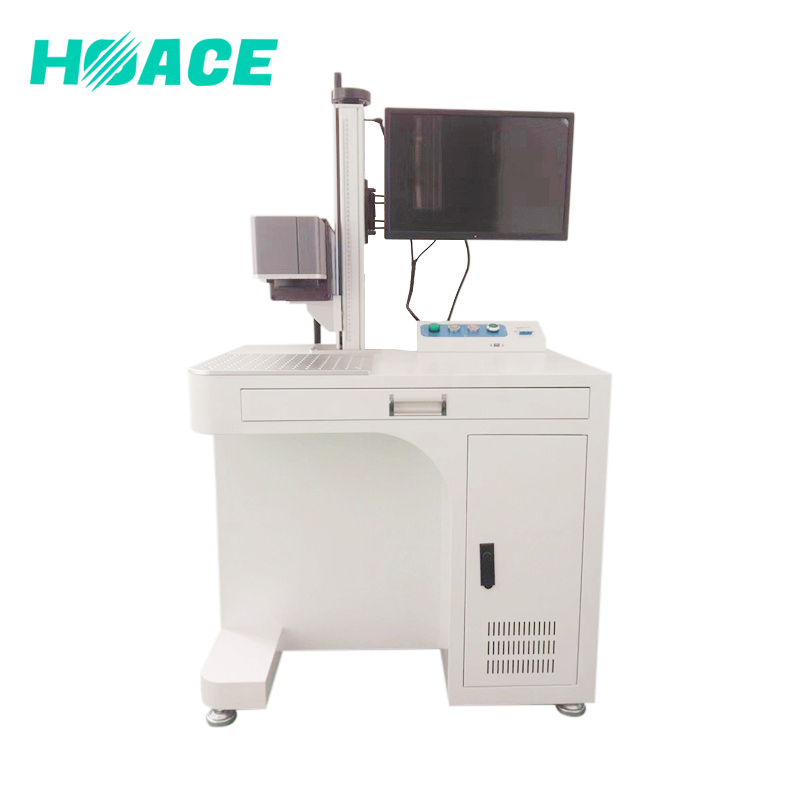

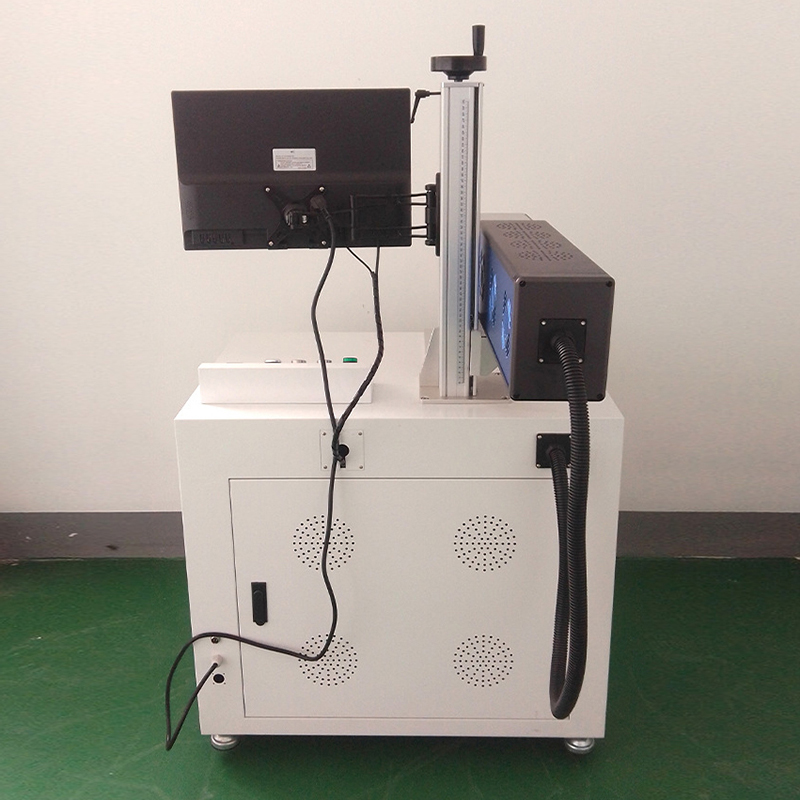

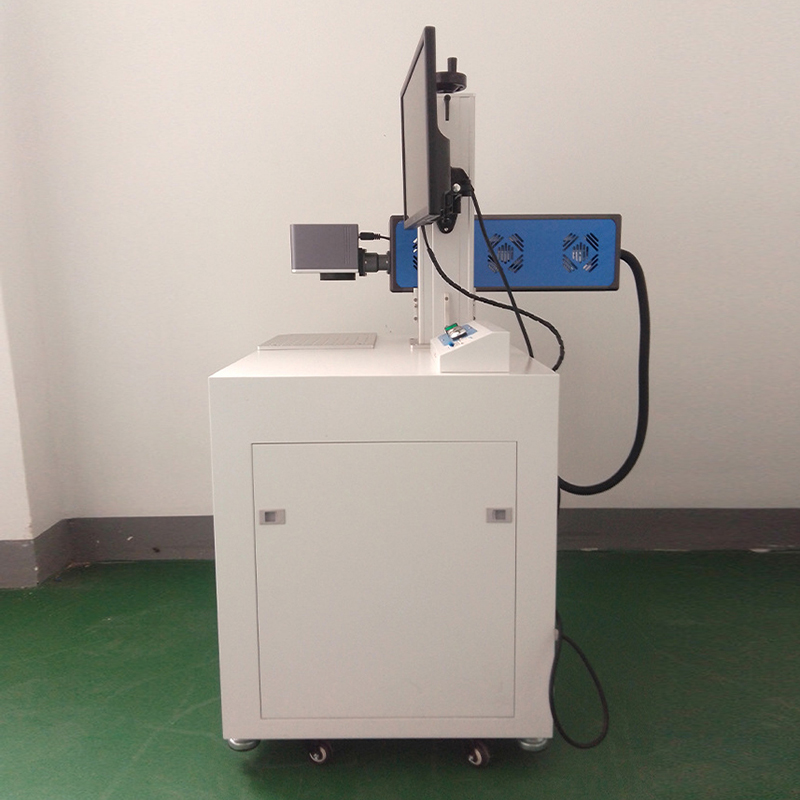

Machine Features & Benefits
HC series are fitted with full set of imported metal sealed radiation frequency Co2 laser, and equipped with high speed scanning galvanometer and extending focusing system.
The machine also has high stability and an anti-intervention industrial computer system as well as high precise lifting platform. It can work on a continuous 24 working hours in high stability, high precision, and high speed.
HC series Co2 laser marking machine can customize text and patterns on various bamboo and wood products such as bamboo bowls, bamboo chopsticks, wooden boards, bamboo spoons, pen holders, combs, etc. The laser marking machine can draw freely through the software, with high processing precision, fast speed.
Feature:
1.Air-cooling for small power unit
2.Stable laser output and high quality beam
3.Maintenance free, long service life and low running cost
4.Compact structure and space-saving
5.Lower cost and easy maintenance
6.Compatible marking software communication to CorelDraw, AutoCAD, Photoshop, such as PLT, DXF, BMP, PCX, JPG and normal sector graph and spot graph: Compatible to mark date, serial No., barcode, ASCII 2 code, auto-coding, auto number-skipping etc.
7.Applicable to long-time running in industrial environment
If you need to mark Metals,Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
it is recommended to useFiber Laser marking machines.If processing cups, rings and other cylindrical or round bodies,we can provide rotating fixtures. Please contact us for more information : info@hoace.com, we will provide professional solutions.
Free test samples – We can carry out free marking effect tests according to your product material
Video Live- You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
Machine Specification
| Name |
HC Series Desktop Co2 Laser Marking Machine |
|||
| Model |
HC-D20 |
HC-D30 |
HC-D50 |
|
| Laser Power |
20 Watt |
30 Watt |
50 Watt |
|
| Laser type |
BOST/DAVI |
|||
| Maximum Thickness |
300mm(11.8in)@110×110mm / 250mm(9.8in)@150×150mm / 206mm(8.1in)@175×175mm |
|||
| Marking area |
110×110mm / 150*150mm 175×175mm |
|||
| Repetition Rate |
1-20KHZ |
|||
| Marking Speed |
≤7m/s(275.6in/s) |
|||
| Engraving Depth |
≤0.4mm(0.016in) |
|||
| Minimum Line Width |
0.1mm(0.004in) Depends on material |
|||
| Minimum Character |
0.2mm(0.008in) Depends on material |
|||
| Marking Interface |
USB connection. Compatible with Windows XP/Vista/7/8/10. |
|||
| Electrical Requirements |
110V-240V/50Hz-60Hz(According to local electricity supply). |
|||
| Communication Mode For Automation |
TCP/IP,IO,RS232. |
|||
| Red Dot Pointer |
Since the laser beam is invisible,the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. |
|||
| Wooden Packing size |
92*76*110CM / (L*W*H) |
|||
| Gross weight |
100 KG |
|||
| Power consumption |
800W |
|||
Machine detail
Sino-galvo scanning head Double red poiner easy find focus,standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift, small size, low temperature and stable and reliable operation.
Wavelength field lens Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.
Famous brand Laser source CRD,Yongli,DAVI Co2 laser source,400,000 hours long lifetime, 20W,30W,50W,100W for option
Aluminum alloy casing The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.
Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.
BJ JCZ control card with EZCad2 software .Simple operation, but po-werful function: Compatible with Windows XP/Nista/ 7/8/10. Compatible with Windows XPNi-sta/7/8/10.
Chuck Rotary device Rotary axis for fiber laser marking machine jewelry can print any round, square material, with high positioning motor, higher accuracy.
Elevator Wheel Aviation aluminum alloy mate-rial.High precision density scale, accurateview of pos-tioning size.
Marking Ruler Enables customer to precisely position for fast engraving.Adapting to different products height,higher precision, more detailed.
Optional Accessories
Ezcad- software
- Powerful editing function.
- Friendly interface.
- Easy to use.
- Support Microsoft Windows XP, VISTA, Win7, Win10 system.
- Support ai, dxf, dst,plt, bmp, jpg, gif, tga, png, tif and other file formats.
- Support for TrueType fonts, single line fonts USF), SHX fonts, dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing, changing text in real time during processing, can d-irectly read and write text files, SQL databases and Excel file.
PACKING LIST
Packing & Delivery
ABOUT US
* 15 years factory production experience
* 3 years machine warranty
* 156 exported country experience
* 38000 square meters fiber laser marking machine factory
* About Shandong Hoace Intelligent Equipment Co.,Ltd.is established in January 2003, owns more than 2000 square meters of researching and office space, more than 38000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 160 countries and areas,and supply OEM service for more than 30 manufactures.
Welcome to Visit Our Factory
If you have plan to visit our fiber/UV laser marking machine factory, just contact us is ok, we will arrange everything well according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us, 24×7, we always here!
Customer Show
Our Certificate
FAQ
1. Q: What are the file types that Hoace Series Software imports?
A: You can import any jpg, bmp, plt, dxf and png files that you want.
2. Q: What’s the computer requirements?
A: Hoace Series machines are compatible with Windows? XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.
3. Q: Is there any laser machine maintenance?
A: All of the configurations of Hoace Series laser marking machine is free maintenance, we provide 2 years warranty.
Q4. Q: How does the Hoace Series machine working?
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.
5. Q: What are the consumables?
A: The Hoace Series laser marking machine if free of maintenance and there are no consumables.
6. Q: Does your laser run from a laptop or Desktop PC?
A: bothare OK, as long as your operation system is window 2000/XP/vista/win7.
7. Q: Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.and it connects to PC by using a USB cable.
8. Q: What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW.
9. Q: Whether it can work with Ratory Device?
A: Yes, it can work with Rotary device, we also have many kinds rotary you can choose.
10.Q: How long is your delivery time?
A: We usually make delivery in one weeks after payment.
11.Q: How about the package?
A: Every machine is packed in wooden boxes, if there is a problem with the transportation, we will take full responsibility.
Alessandra Ventola –
I was always hesitant about those cheap Chinese-made Co2 marking machine. Did lots of research for the HC-D30 and decided to give it a try. Arrived 38 days after payment, and all in good condition. Little to no assembly is required, it’s plug and play, just find a space with a power outlet to place it. I’ve done a few projects, including the sample files provided and some of my own creations.
