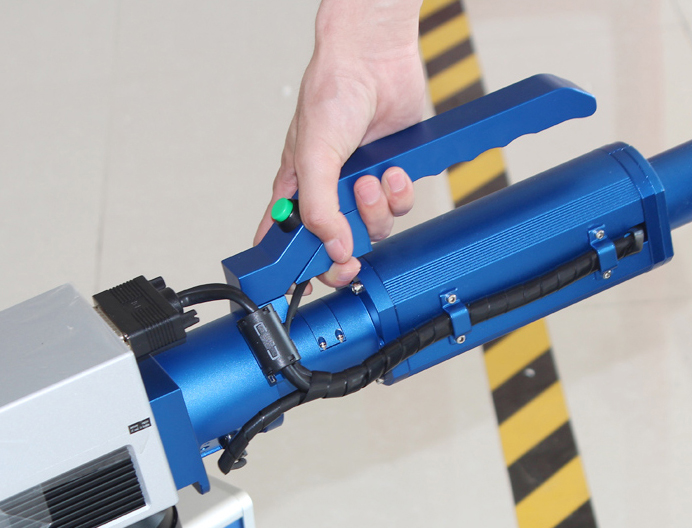

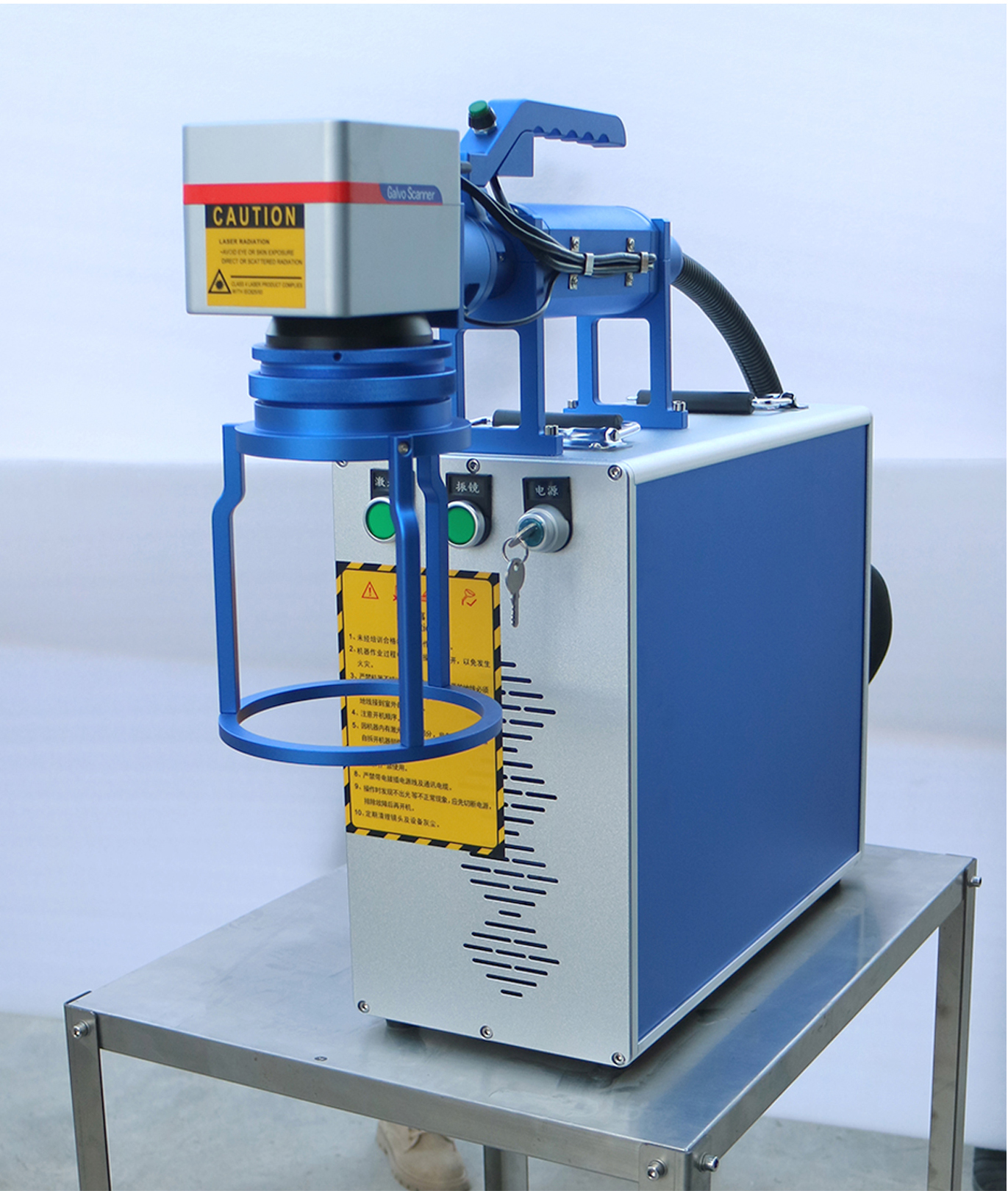

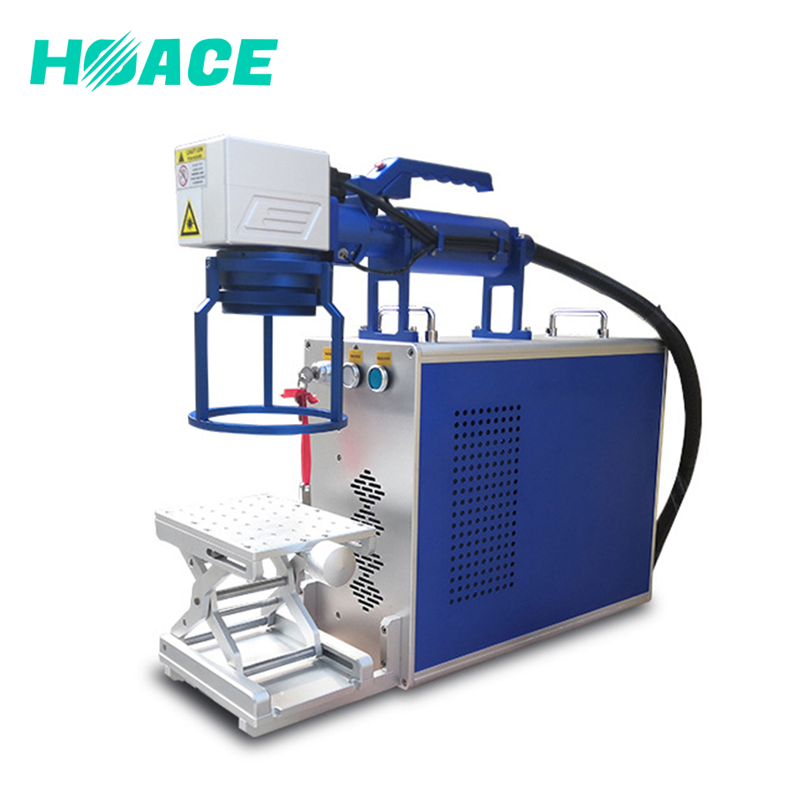

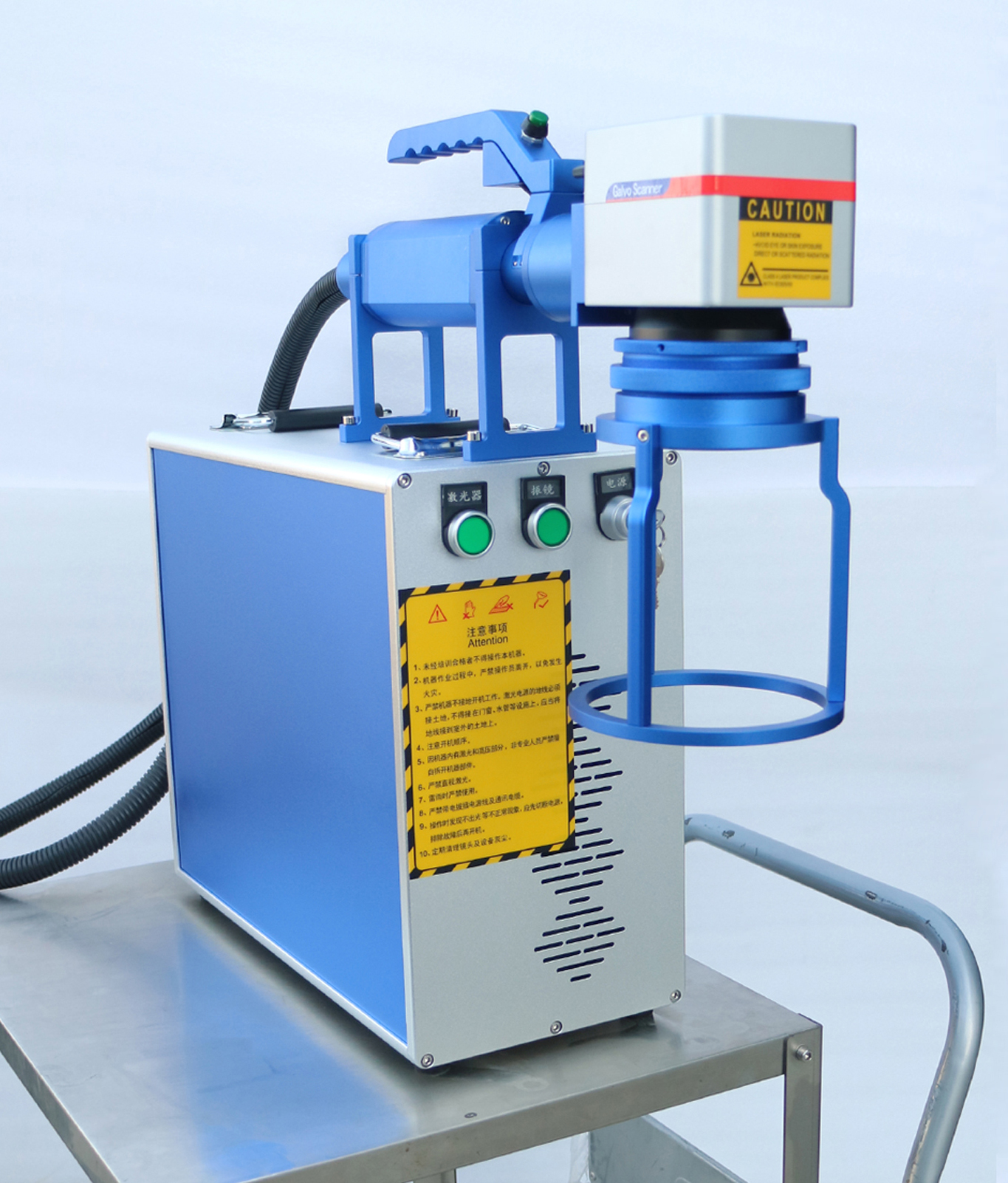

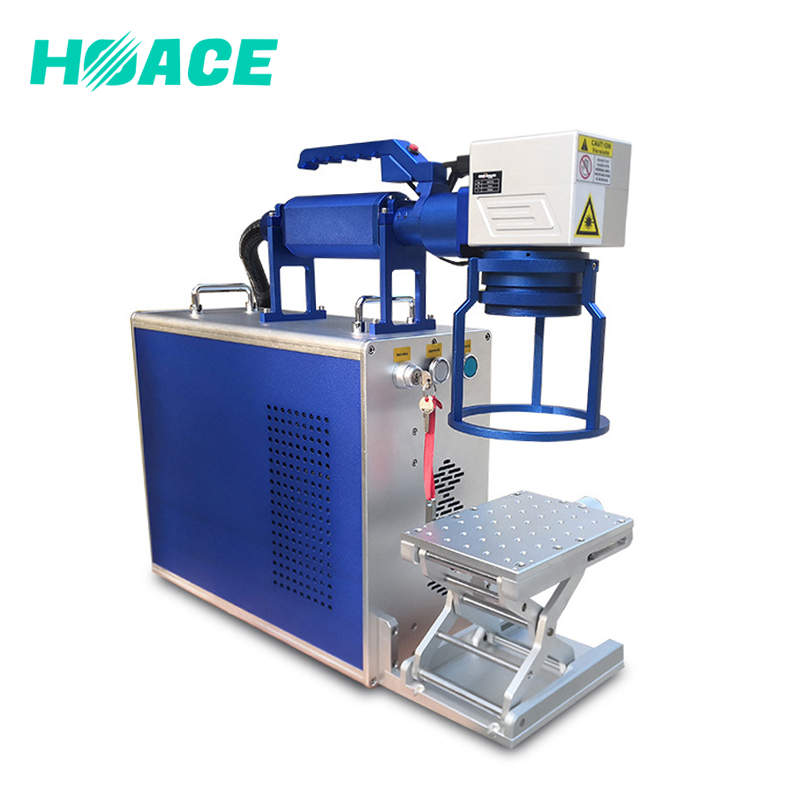

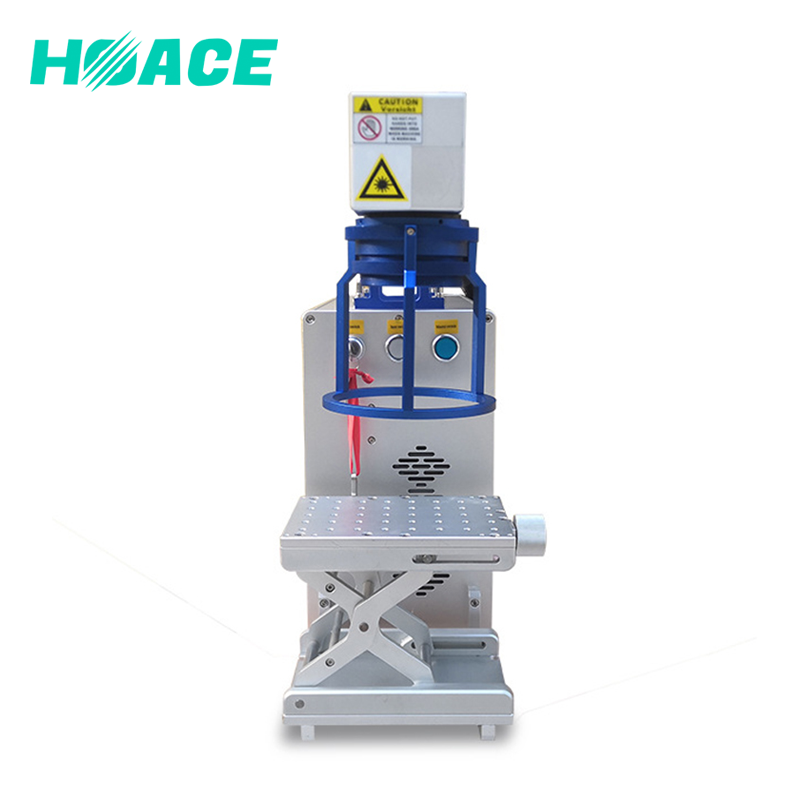

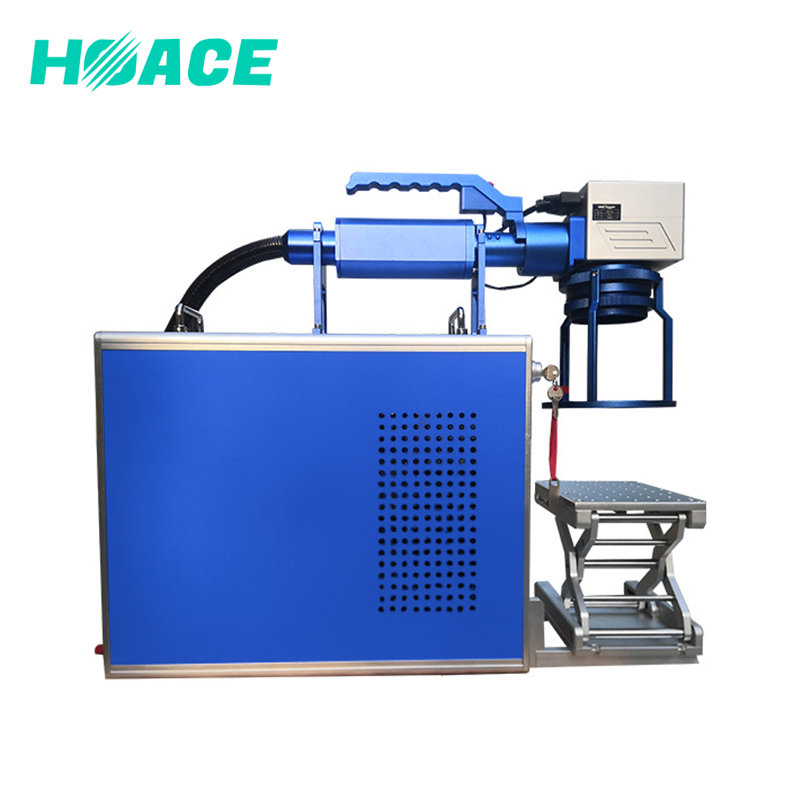

HF Series Handheld Fiber Laser Marking Machine

$1,400.00$6,700.00

Clear

Description

After Sale Service Introduction

What kind of support you can get from Hoace Intelligent?

Hoace Intelligent Lifetime Tech Support Lifetime Tech Support

  • Default 3-Year Warranty
  • 2-year Warranty Extended for Buyer Show
  • 30% OFF for Parts of Machine to replace beyond the warranty
  • Lifetime Tech Assistance for your marking solution
Hoace Intelligent Local Tech Specialists Local Tech Specialists

  • For complex machine crashes that our technician can’t deal with, local tech Specialists will assist.
  • Local after-sales service area:
    USA / Canada / Brazil / Mexico / Ecuador
    Turkey/Ukraine/Kazakhstan/Iraq
    Korea / Thailand / Indonesia / India
    Poland / Saudi Arabia / Italy
    Australia / South Africa
    From March 12, 2022: HOACE Intelligent has decided to withdraw from the Russian market. (We will continue to provide after-sales service to our previous customers but will not start new business)
  • Free Tutorials for Beginners
Hoace Intelligent Customer Support Center Customer Support Center

  • Online Chat Support
  • Prompt reply within 24 hours
  • Customer Complaint Channel

Application

Applicable Materials:

Metals: Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact us with questions on specific materials not listed, we can process a sample for confirmation.

Applicable Industry:

Workshop,  Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office, DIY, Kickstarter Entrepreneur.

Application Cases:

Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.
Laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

application industry

Machine Features & Benefits

Our laser marking machine has multiple functions and can engrave various metals, such as iron, steel, aluminum, copper,gold and silver jewelry, also can process the hard plastic materials.

There are also a variety of options for the working format:
110x110mm, 150x150mm, 200x200mm and 300x300mm,
and it can also be customized.If processing cups, rings and other cylindrical or round bodies,
we can provide rotating fixtures. Please contact us for more information, we will provide professional solutions.


Environmental friendly, easy operation and maintenance

Service life able to reach 100,000 hours

Fits for all metal and varies non-metal materials

Compact design, simple interface, high precision

Flexible and adjustable processing direction

Large area cooling holes improve efficiency

Clear scale to measure and align workpiece

Convenient lifting wheel to achieve ideal effects

Machine Specification

Name

HF Series Split Fiber Laser Marking Machine

Model

HF-S20

HF-S30

HF-S50

HF-S100

Laser Power

20 Watt

30 Watt

50 Watt

100 Watt

Laser type

Max / Raycus / IPG Laser Source

Wavelength

1064nm

1064nm

1064nm

1064nm

Marking Speedy

≤ 6000mm/s

≤ 6000mm/s

≤ 6000mm/s

≤ 6000mm/s

Laser Frequency

50-100KHZ

50-100KHZ

1-4000KHZ

1-4000KHZ

Pulse Width

120-150ns

120-150ns

2-500ns

2-500ns

Pulse Energy

1 mJ

1 mJ

1.5 mJ

1.5 mJ

Marking deep

0.1-0.5mm

0.1-0.5mm

0.1-2mm

0.1-2mm

Power consumption

500W

500W

600W

800W

Marking area

110×110mm / 170×170mm / 220×220mm / 300×300mm

Cooling System

Air Cooling

Wooden Packing size

85*40*80 cm / (L*W*H)

Gross weight

60 KG

Optional Rotary Fixture:

50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm, 220mm etc.

More optional Parts:

Conveyor table / Vacuum system / Electric XY table.

Package

Standard export wooden case

Reference scan area

reference scan area

High-quality F-Theta lenses guarantee a perfect application result over the entire surface.

We can equip different F-theta lens according customer marking products size. Laser standard size :110*110mm, the bigger lens the longer focus so laser beam will be weak.

Focal Length

Non-standard HFT100

HFT160

HFT290

HFT420

Working Fields

70X70mm

110X110mm

200X200mm

300X300mm

Focus Diameter

~27μm

~45μm

~70μm

~110μm

Recommended Column Height

500 mm

500 mm

500 mm
800 mm

800 mm

REMARK : Machine default Standard installation 110*110mm F-theta Lens, marking area 110*110mm, Column high 500mm

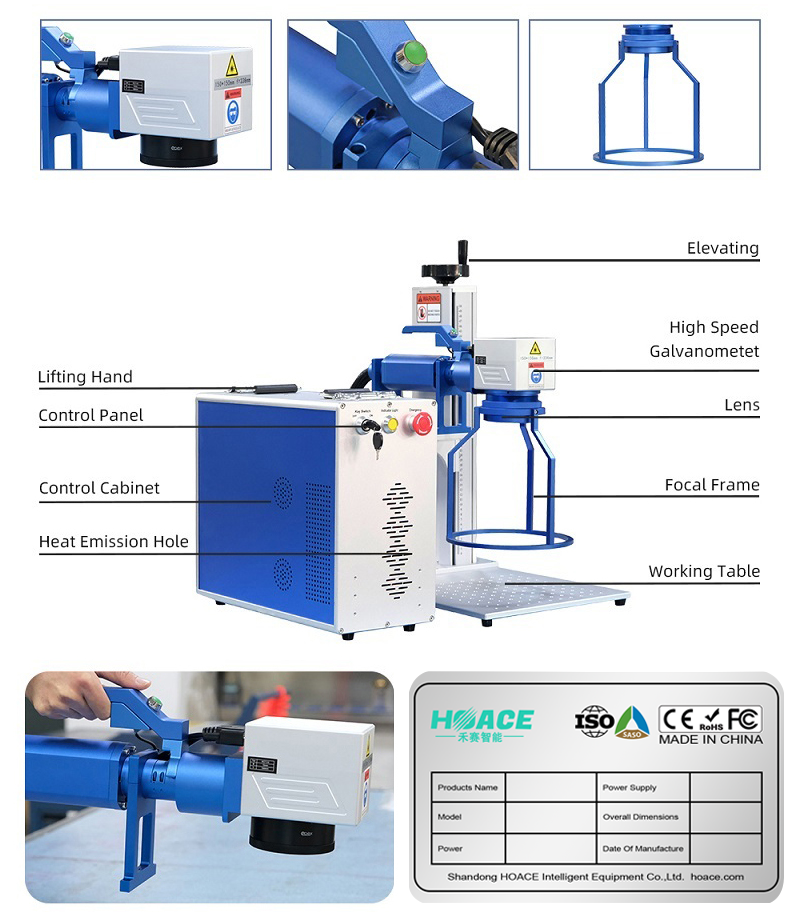

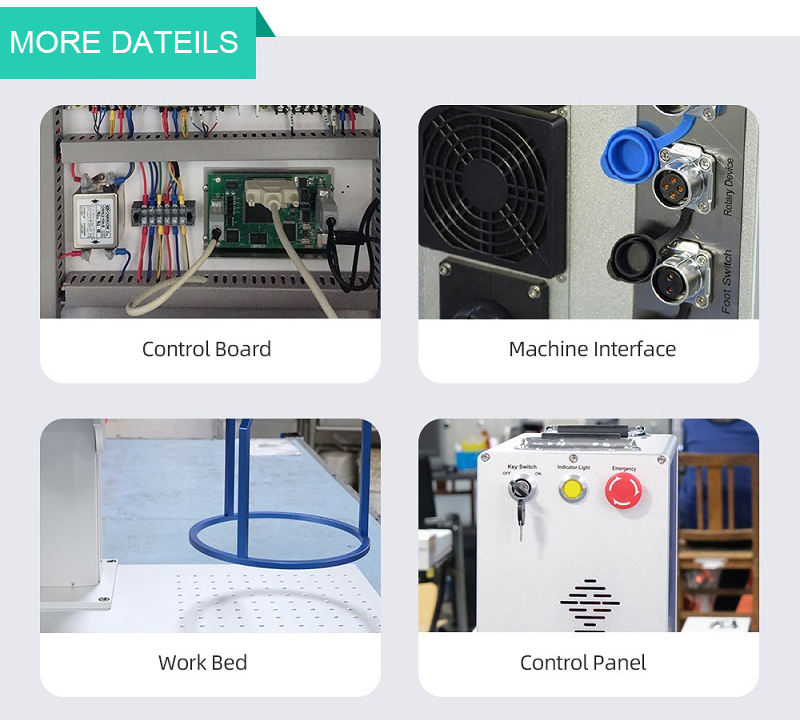

Machine detail

sino galvo
Sino-galvo scanning head Double red poiner easy find focus,standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift, small size, low temperature and stable and reliable operation.
high light focusing mirror
Wavelength field lens Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.
raycus laser source
Famous brand Raycus laser source , with stable and long life time , max reach 10.0000+hours , IPG ,JPT laser source all available , let us know your request if any special request.
casing
Aluminum alloy casing The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.
working platform
Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.
bjjcz control card
BJ JCZ control card with EZCad2 software .Simple operation, but po-werful function: Compatible with Windows XP/Nista/ 7/8/10. Compatible with Windows XPNi-sta/7/8/10.
Chuck Rotary deviceChuck Rotary deviceRotary axis for fiber laser marking machine jewelry can print any round, square material, with high positioning motor, higher accuracy.

Elevator wheel
Elevator WheelAviation aluminum alloy mate-rial.High precision density scale, accurateview of pos-tioning size.
Marking Ruler
Marking RulerEnables customer to precisely position for fast engraving.Adapting to different products height,higher precision, more detailed.

Kindly reminder

1. If you need for ring , jewelry , bracelet engraving , or tumbler marking , we have different models rotary device here , suitable for different work , so let us know in advance , we will recommend the suitable accessories device for you

2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking , X Y table for help to adjust product height when working , without moving product etc , kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge

plate fixture
rotary fixture



Ezcad- software

  • 1. Powerful editing function.
  • 2. Friendly interface.
  • 3. Easy to use.
  • 4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.
  • 5. Support ai, dxf, dst,plt, bmp, jpg, gif, tga, png, tif and other file formats.
  • 6. Support for TrueType fonts, single line fonts USF), SHX fonts, dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing, changing text in real time during processing, can d-irectly read and write text files, SQL databases and Excel file.

ezcad software

PACKING LIST

paclomg list

Optional Accessories

optional accessories

Packing & Delivery

packing delivery

ABOUT US

* 15 years factory production experience
* 3 years machine warranty
* 156 exported country experience
* 38000 square meters fiber laser marking machine factory

* About Shandong Hoace Intelligent Equipment Co.,Ltd.is established in January 2003, owns more than 2000 square meters of researching and office space, more than 38000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 160 countries and areas,and supply OEM service for more than 30 manufactures.

About hoace intelligent

Welcome to Visit Our Factory

If you have plan to visit our fiber/UV laser marking machine factory, just contact us is ok, we will arrange everything well according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us, 24×7, we always here!

Customer Show

Hoace Intelligent customershow

Our Certificate

Hoace Intelligent certificate

FAQ

1. Q: What are the file types that Hoace Series Software imports?
A: You can import any jpg, bmp, plt, dxf and png files that you want.

2. Q: What’s the computer requirements?
A: Hoace Series machines are compatible with Windows? XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.

3. Q: Is there any laser machine maintenance?
A: All of the configurations of Hoace Series laser marking machine is free maintenance, we provide 2 years warranty.

Q4. Q: How does the Hoace Series machine working?
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.

5. Q: What are the consumables?
A: The Hoace Series laser marking machine if free of maintenance and there are no consumables.

6. Q: Does your laser run from a laptop or Desktop PC?
A: bothare OK, as long as your operation system is window 2000/XP/vista/win7.

7. Q: Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.and it connects to PC by using a USB cable.

8. Q: What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW.

9. Q: Whether it can work with Ratory Device?
A: Yes, it can work with Rotary device, we also have many kinds rotary you can choose.

10.Q: How long is your delivery time?
A: We usually make delivery in two weeks after payment.

11.Q: How about the package?
A: Every machine is packed in wooden boxes, if there is a problem with the transportation, we will take full responsibility.

Additional information

Weight 50 kg
Dimensions 760 × 510 × 680 cm
Model

HF-S20 (20W), HF-S30 (30W), HF-S50 (50W), HF-S100 (100W)

Marking Area

4.33”*4.33” (110*110mm), 7.87”*7.87” (200*200mm), 11.81”*11.81” (300*300mm)
